PHOTOVOLTAIC MODULE LONGI 460W, HI-MO 6 ARTIST, MONOCRYSTALLINE, FULL BLACK, WHITE PAD, FRAME 30 MM

LONGi LR7-54HTB-460M Solar Panel – 460W, Full Black

A high-performance 460W solar module designed for maximum efficiency and sleek aesthetics. With up to 23% module efficiency and minimal power degradation, it offers long-term reliability and energy savings. Built with durable tempered glass and an anodised aluminium frame, resistant to heavy loads (up to 5400 Pa) and hail impact. A perfect choice for both residential and commercial installations.

Power: 460W
Efficiency: 22.5%
Design: Full Black – modern and stylish appearance
Warranty: 25-year product and linear power warranty
Certifications: IEC, ISO, weather-resistant design

MAX MODULE  EFFICIENCY  23.0%

POWER TOLERANCE  0~3%

FIRST YEAR POWER DEGRADATION  <1%

YEAR 2-25 POWER DEGRADATION  0.40%

25-year Warranty for Materials and Processing



Mechanical Parameters:

Cell Orientation:  108 (6×18)

Junction Box:    IP68

Output Cable:  4mm2, ±1200mm length can be customized

Glass:  Single glass, 3.2mm coated tempered glass

Frame:  Anodized aluminum alloy frame

Weight:   21.6kg

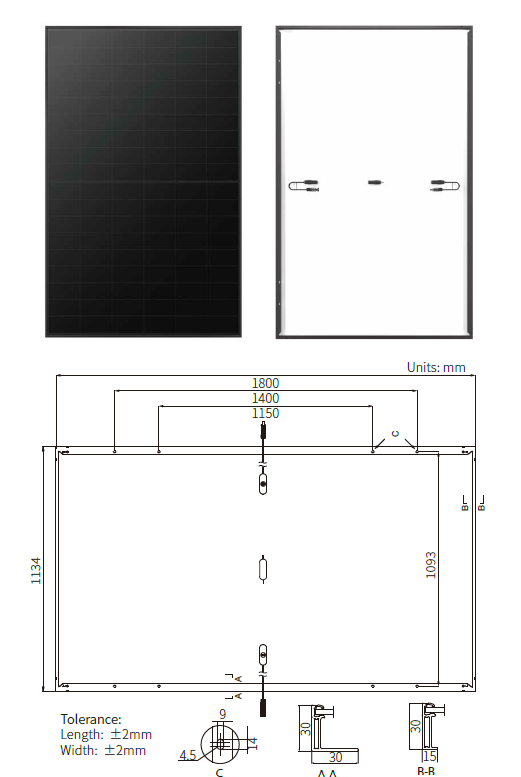

Dimension:  1800×1134×30mm



Electrical Characteristics

Module Type:   LR7-54HTB-460M

Testing Condition:  STC  NOCT

Maximum Power (Pmax/W):  460  344

Open Circuit Voltage (Voc/V):  39.51 / 37.10

Short Circuit Current (Isc/A):  14.77 /  11.93

Voltage at Maximum Power (Vmp/V):  33.34 / 30.42

Current at Maximum Power (Imp/A):  13.80 / 11.31

Module Efficiency(%):   22.5%

Mechanical Loading

Front Side Maximum Static Loading:   5400Pa

Rear Side Maximum Static Loading:    2400Pa

Hailstone Test:  25mm Hailstone at the speed of 23m/s



Temperature Ratings (STC)

Temperature Coefficient of Isc:   +0.050%/℃

Temperature Coefficient of Voc:  -0.230%/℃

Temperature Coefficient of Pmax:  -0.280%/℃

Operating Parameters

Fire Rating:   IEC Class C

Protection Class:  Class II

Nominal Operating Cell Temperature:  45±2℃

Maximum Series Fuse Rating: 25A

Maximum System Voltage: DC1500V (IEC)

Power Output Tolerance:  0 ~ 3%

Operational Temperature:  -40℃   +85℃
